Anteris Operating Tables

Designed to meet the highest demands of surgical performance - Anteris Operating tables are engineered for both complex and routine procedures. Both our Revo and Ultra ranges offer class-leading precision, safety features, and outstanding durability. Built in Europe with CE compliance and ISO-certified quality.

Anteris Revo & Anteris Ultra: Intelligent Operating Tables for Every Specialty

At Brandon Medical, we bring innovation to life. The Anteris Revo and Anteris Ultra ranges redefine the standard of surgical performance with cutting-edge design, unmatched versatility, and precision engineering to support the most demanding clinical environments.

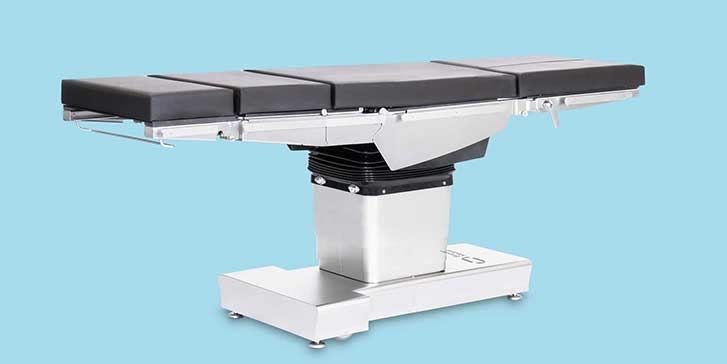

Anteris Revo – Redefining Precision, Safety & Value

Built in Europe and fully CE and ISO-certified, the Anteris Revo series is engineered to deliver class-leading performance in both complex and routine procedures. The flagship Revo 580 and Revo 570 models feature full electro-hydraulic movement, up to 400mm powered longitudinal shift, and smart safety sensors that prevent collisions and incorrect assembly. A high static load capacity of 460kg and advanced C-arm compatibility make them ideal for high-acuity procedures requiring full-body imaging and precise control.

Revo’s modular design supports all surgical disciplines – from bariatrics to neuro, orthopaedics, and urology – with reverse tabletop orientation, integrated accessory rails, and intuitive hand or foot controls. The Revo 300 series (including Revo 340 and 330) provides robust functionality with a cost-efficient footprint, making it an excellent solution for general surgery and mid-tier hospitals.

Smart accessories like mounting wedges, tabletop width extenders, and interchangeable head and leg sections add flexibility, while viscoelastic mattresses and waterproof welded seams protect patients and enhance infection control. Revo’s intelligent ergonomics improve workflow and surgical team comfort without compromising safety or precision.

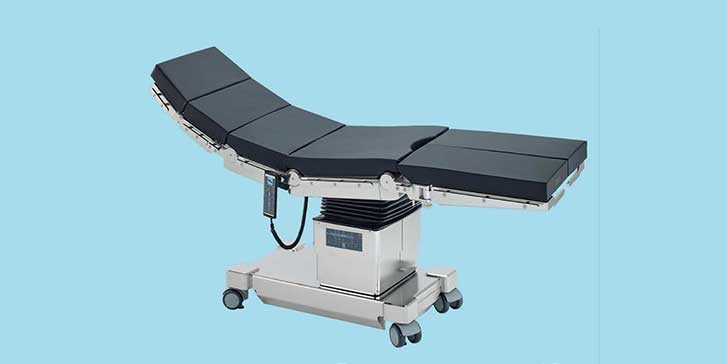

Anteris Ultra – Power, Control & Imaging in Motion

The Anteris Ultra series represents the pinnacle of mobile surgical table performance. Designed for high-throughput hospitals and surgical centres, Ultra 600 and Ultra 700 models combine high-performance electro-hydraulic control with radiolucent full-body imaging, advanced memory foam support, and extreme adjustability.

The Ultra 700 series supports loads up to 544kg, with longitudinal sliding up to 380mm, powered fifth wheel, and precision movement across every axis. It’s the perfect platform for bariatric, orthopedic, robotic, or hybrid procedures requiring exceptional imaging and positioning. Features like auto-collision prevention, simultaneous levelling, and motorised drive enhance surgical team efficiency and reduce physical strain.

The Ultra 600 series offers compact, flexible performance with optional manual back-up control, X-ray tunnel, and choice of PUR or SF viscoelastic upholstery for maximum comfort and hygiene. These models integrate seamlessly into surgical and hybrid imaging environments, supporting neurosurgery, spinal, and laparoscopic workflows with ease.

Both Ultra ranges are compatible with a wide selection of positioning accessories, including skull clamps, stirrups, headrests, traction frames, and lateral supports, offering complete configurability for any procedure.


Why Choose Brandon Medical?

For over 75 years, Brandon Medical has led the way in SMART healthcare solutions, combining British engineering with intuitive innovation. The Anteris Revo and Ultra ranges are built for tomorrow’s operating rooms – resilient, intelligent, and future-proof, helping surgical teams achieve better outcomes, reduce risk, and maximise efficiency.

View our range of Anteris models

Excellence in Reliability, Patient Safety & Procedural Efficiency

The Revo 500 series offers full electro-hydraulic movement, smart safety sensors, up to 460kg static load capacity, and advanced imaging access with 400mm powered longitudinal shift. In contrast, the 300 series is built for general surgery, providing core functionality with fewer powered movements, a lower load capacity (350kg static), and manual longitudinal shift on some models

With a maximum permissible load of 544kg and features like electric leg rest adjustment, reverse mode, and extensive range of motion (e.g. -90° to +90° leg rest, 380mm longitudinal shift), the Ultra 700 supports heavy patients and complex orthopedic positioning, including with extension devices

Yes. All Ultra and Revo models support high-quality imaging. Revo 500 series and Ultra 600/700 offer radiolucent tabletops, full-body imaging with longitudinal shift, and reversed top orientation. The Ultra series includes options like X-ray cassette tunnels and carbon accessories for optimal fluoroscopy access

Control options include wired or wireless hand controls, foot pedals, and side column panels. Revo 500 hand controls support 10 memory positions, emergency modes, and adjustable motion speed. The Ultra series includes illuminated, color-display handsets with battery indicators and optional IR remotes

Accessories include Goepel leg rests, stirrups with one-hand gas spring control, lithotomy positioning sets, flexible anaesthesia screens, thigh and abdominal straps, and fluid collection systems. These support safe, adjustable lithotomy positioning for endoscopic or laparoscopic pelvic procedures

The SO-12 and SO-14 orthopedic attachments offer traction mechanisms, carbon fiber arms for X-ray imaging, foot harnesses, leg supports, and dedicated clamps. These enable precise positioning and traction during lower limb fracture repair or hip surgery

Options include horseshoe-shaped headrests (single and split), skull clamps, tripartite backrests for shoulder/ENT access, and joint arms for adjustable fixation. These allow precise and stable positioning for cranial and cervical procedures

Yes. Revo and Ultra models include interchangeable head/leg sections, tabletop width extenders, and mounting wedges that allow accessory swaps even with the patient on the table. This modularity increases flexibility across specialties and reduces theatre turnover time

PUR (60mm) is a durable, ergonomic polyurethane foam, while SF (80mm) is a viscoelastic, pressure-relieving foam that minimizes pressure injuries. Both are electrically conductive, radiolucent, waterproof, and easy to disinfect
