Medipower™ iBEPU
Intelligent Battery Emergency Power Units for Operating Lights designed by Brandon Medical
Medipower™ iBEPU
Intelligent Battery Emergency Power Units for Operating Lights designed by Brandon Medical

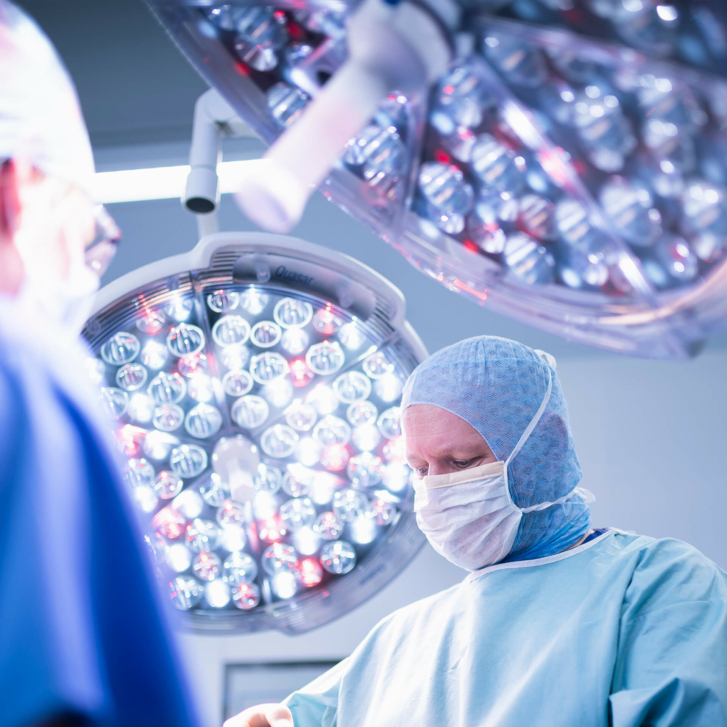

Surgical luminaries are one of the critical systems within the OR and require the highest level of power supply resilience. To ensure this each luminaire should have its own primary (mains) and secondary (battery backup) supply. In accordance with HD60364-7-710, BS7671-2018 (18th edition) and HTM06-01:2017, the surgical operating light must have a back up of 3 hours.
Benefits
- Time and cost saving via automated test and battery maintenance.
- HTM 06-01 compliant.
- Modbus communication.
- Intelligent theatre control panel (iTCP) connection.
- Easy to monitor and configure with Near Field Communication (NFC).
- Collects data for secure reports via Android app.

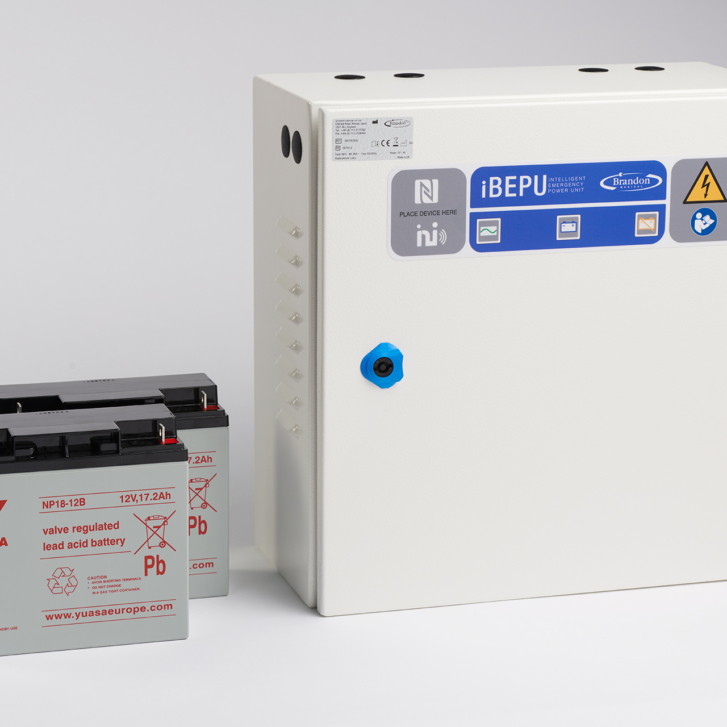

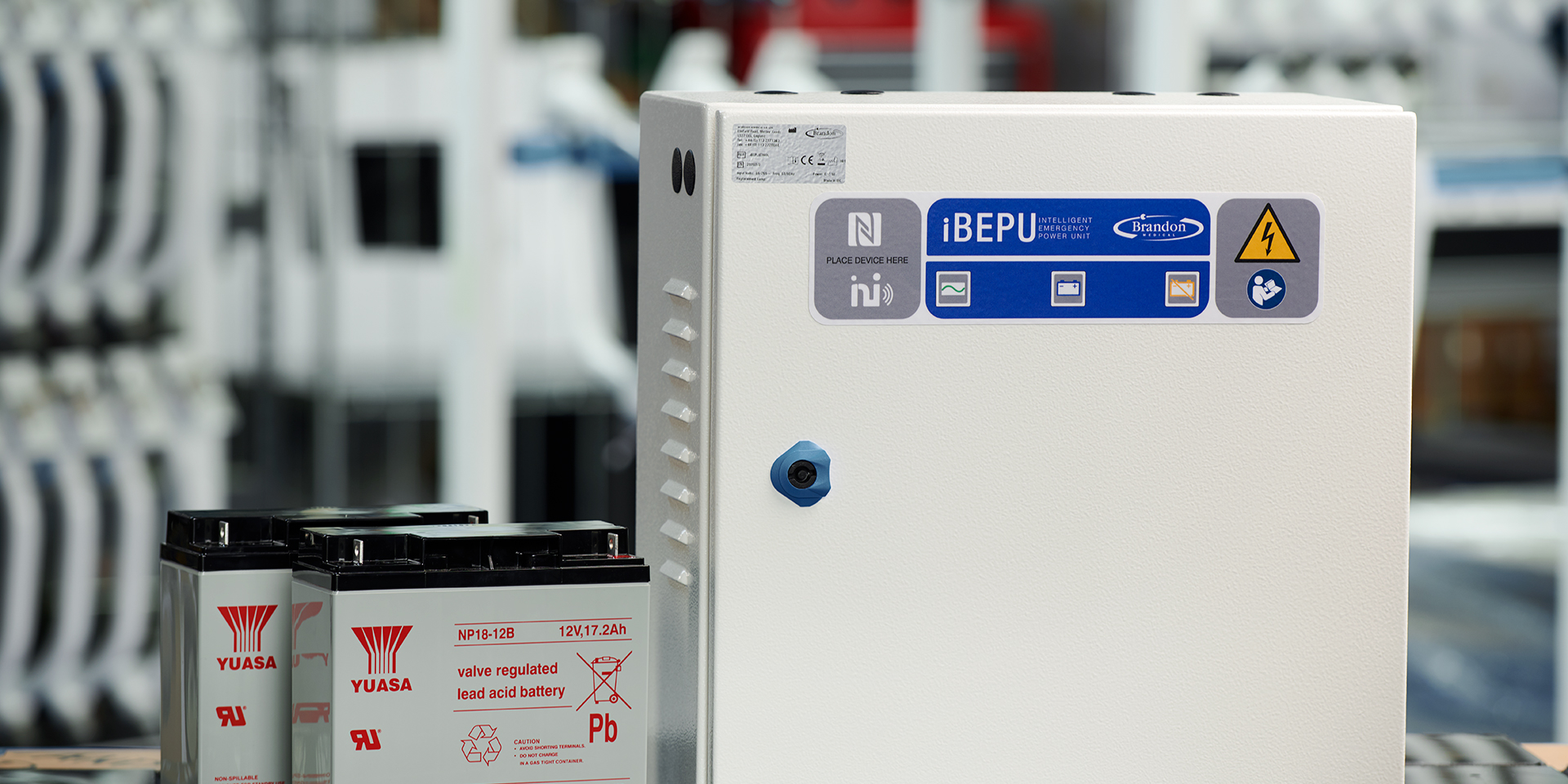

Brandon Medical’s iBEPU system consists of:
- An integrated power supply unit (PSU).
- A separate battery charger.
- 10-year design life batteries.
- High speed (static switch) changeover unit.
- Modbus communication to TCP.
The primary supply unit (PSU) will provide the lamp with power under normal operating conditions. Should the primary supply suffer a mains failure or a catastrophic component failure, then the iBEPU will switch over to its own battery supply.

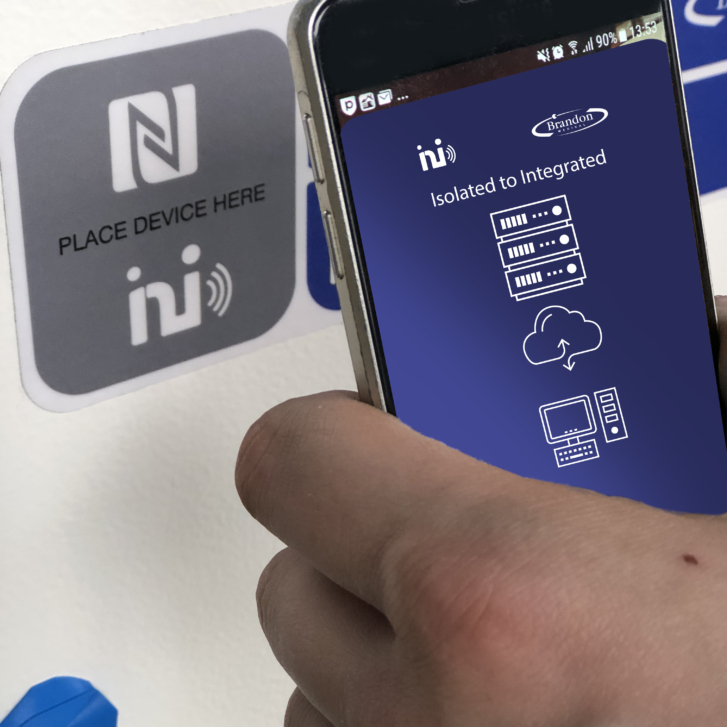

Isolated to Integrated
Through its associated app engineers can configure, maintain and provide reporting on the battery system.
| iBEPU0300L Enclosure Size | 400 x 400 x 200mm |
| Enclosure Material | Steel |
| Painted | RAL9010 |
| Weight without batteries | 11kg |
| 18Ah Battery Size L x W x H | 180 x 76 x 167mm (Part No. EBL13847-1218) |
| Input Voltage VDC | 85 to 265 VAC |
| Output Voltage VDC | 20 to 28.5 VDC |
| Max Output Current | 4A |
| Wattage (VA) | 125VA |
| Max Discharge Current | 30 Amps Max |
| Battery Autonomy (Based on 1 x QE60) | 3 Hours @21ºC |
| Isolation Voltage | Input to Output 2k VAC |
| Isolation Resistance | 100 MÙ |
| Ambient Temperature | 15 to +30ºC |
| Storage Temperature | -40 to +70ºC |
| Relative Humidity | 20 to 95% RH |
| Installation Position | Vertical |
| Pollution Degree | II |
| Degree of Protection | IP20 |
| UPS Current Consumption (No Load) | 0.2 Amps |
| UPS Current Consumption (Charging) | 3.5 Amps |
| Battery Voltage Range | 19.2 – 28.5 VDC |
| Cooling Method | Free Air Convection |
| Battery Reverse Voltage | 28.5 VDC |
| Battery Output Fuse | 10 Amps |
| Recommended Batteries | 2 x 12 V 18Ah in Series |
| Nominal Charge Voltage | 27.2 V |
| Battery Low Voltage Cut-Out Setting | 19.2 V |
| Volt Free Contact Rating | 2A @ 30 VDC |
| Voltage Measurement Range | 0 – 30 V ±2% |
| Temperature Measurement Range | 0 to 70ºC ±3ºC |
| Current Measurement Range | 0 to 3A ±10mA |
| Local Indicators | Mains Healthy, Battery In Use, Battery Fail |
| Configurable | Via NFC Interface |
| Communications | 4-Wire RS485 |
| Protocols | Modbus RTU Slave |
Compliances
- EN60601-1:2006+A12:2014
- HTM06-01 Compliant
- EN60601-1-2:2015
